What is an ER Tap Steel Sealed Collet?

These are ER Tap Collets with a built-in seal to prevent coolant from escaping during high-pressure tapping operations. Learn more at pactoolsusa.com.

What are the advantages of using sealed tap collets?

Sealed collets maintain consistent coolant flow through the tool, reducing heat and improving thread quality and tap life. Full specs at pactoolsusa.com.

Are these collets compatible with standard ER holders?

Yes, ER Tap Steel Sealed Collets are compatible with standard ER holders but require tapping-specific chucks. Check compatibility at pactoolsusa.com.

Which applications are best suited for these collets?

Ideal for synchronized (rigid) tapping where high-pressure coolant is used to flush chips and reduce friction. Application info is available at pactoolsusa.com.

How do I maintain ER Tap Steel Sealed Collets?

Wipe clean after each use, check the seal for wear, and store in a dry place to prevent rust. Maintenance guidelines at pactoolsusa.com.

Click to enlarge

Previous product

240179TS

$60.00

Next product

240181TS $60.00

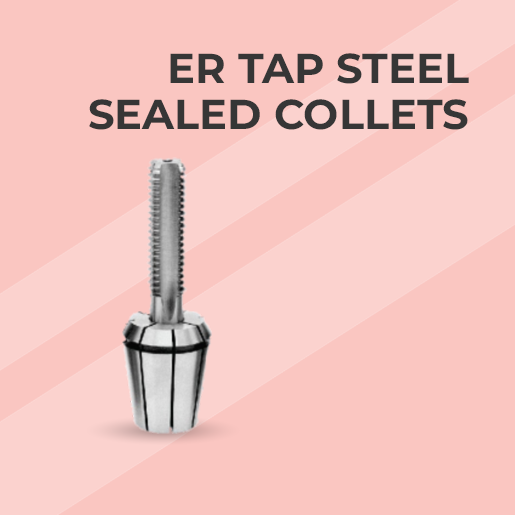

240180TS | ER TAP STEEL SEALED COLLETS

$60.00

Chicago, USA Stock -

Canada Stock -

ERTSS32-11.0-9.0 Tap STEEL Sealed Collets

Specification

Series - ERTSS32
ShankSize - 11.0mm
Size - MM
TapStandard - DIN, JIS & ISO Standard

Description

Description

ERTSS32-11.0-9.0 Tap STEEL Sealed Collets

PAC Precision Tools ER Tap Steel Sealed Collets have been specifically designed for precision tapping applications that involve the incorporation of sealing. They ensure the efficient tapping of holes while preventing the leakage of coolant.

The ER Tap Steel Sealed Collets have been designed using high-quality hardened spring steel. They have been precision-ground to provide high precision. They ensure the efficient tapping of holes while providing the benefits of coolant usage.

Features:

Accuracy: ≤ 5 Micron (0.0002” TIR) or better
Square drive design for positive tap drive
Sealed design for through-coolant applications
Prevents coolant leakage and maintains pressure stability
Uniform 360° clamping force for positive tap holding
High elasticity for positive gripping
Standard ER collets (ER16 through ER40)
Series available: ERTSS11 through ERTSS40
Made from hardened and tempered high-quality spring steel
For synchronous tapping operation using a standard ER collet chuck
Collet bore is exactly to the Tap shank diameter with a square drive for accuracy and rigidity
Replace expensive tap holders
Corrosion-resistant finish

PAC Precision Tools, a Trusted CNC tools distributor in Mississippi, ER Tap Steel Sealed Collets have been designed for the efficient tapping of holes. They have been designed for the synchronization of the tapping process. They ensure the efficient tapping of holes while providing the benefits of coolant usage.

Frequently Asked Questions

1. What are ER Steel Sealed Collets? ▼

ER Steel Sealed Collets are special collets designed with a built-in steel seal that prevents coolant from passing through the collet. They are used for coolant-through tool holders to direct coolant only through the tool. As a precision tools supplier in the USA, PAC Precision Tools offers sealed collets for high-performance CNC machining.

2. Why are sealed collets used instead of standard ER collets? ▼

Sealed collets are used when you need reliable coolant control. They prevent coolant leakage and ensure that coolant flows directly through the cutting tool for better cooling, chip removal, and tool life - especially in deep-hole drilling or high-speed cutting.

3. Are ER Steel Sealed Collets suitable for high-pressure coolant systems? ▼

Yes, sealed collets are designed to withstand high-pressure coolant systems without leaking. This ensures consistent coolant delivery, improved machining accuracy, and protection against heat buildup during demanding CNC operations.

4. What tool types are compatible with ER Steel Sealed Collets? ▼

They work with drills, reamers, end mills, and other cylindrical shank tools that are used with coolant-through tool holders. These collets help improve cooling and chip evacuation for difficult materials like stainless steel and titanium.

5. What sizes are available for ER Steel Sealed Collets at PACTools? ▼

Sealed collets are commonly available in ER16, ER20, ER25, ER32, and ER40 sizes. Each size offers a limited clamping range to ensure a tight seal and maximum coolant pressure efficiency.

6. How do I maintain ER Steel Sealed Collets? ▼

Clean the collet after every use, keep the sealing area free of chips, and avoid using damaged tools that can scratch the seal. Proper care ensures long-lasting performance and prevents coolant leakage during machining. For more information, you can contact us here +1 262-282-2456 or email us at sales@pactoolsusa.com.

7. Are sealed collets more accurate than standard ER collets? ▼

Yes, sealed collets are typically high-precision collets with better runout control. They provide greater accuracy and tool stability, making them ideal for high-precision CNC applications. PAC Precision Tools USA - a trusted CNC tools distributor in the USA - supplies premium sealed collets for accurate machining.

8. Need help choosing the right ER Steel Sealed Collet? ▼

If you need more information or guidance with choosing the right ER steel Sealed Collet, you can contact us here +1 262-282-2456 or email us at sales@pactoolsusa.com
