What is an ER Tap Steel Sealed Collet?

These are ER Tap Collets with a built-in seal to prevent coolant from escaping during high-pressure tapping operations. Learn more at pactoolsusa.com.

What are the advantages of using sealed tap collets?

Sealed collets maintain consistent coolant flow through the tool, reducing heat and improving thread quality and tap life. Full specs at pactoolsusa.com.

Are these collets compatible with standard ER holders?

Yes, ER Tap Steel Sealed Collets are compatible with standard ER holders but require tapping-specific chucks. Check compatibility at pactoolsusa.com.

Which applications are best suited for these collets?

Ideal for synchronized (rigid) tapping where high-pressure coolant is used to flush chips and reduce friction. Application info is available at pactoolsusa.com.

How do I maintain ER Tap Steel Sealed Collets?

Wipe clean after each use, check the seal for wear, and store in a dry place to prevent rust. Maintenance guidelines at pactoolsusa.com.

Click to enlarge

Previous product

250071TS

$66.00

Next product

250073TS $66.00

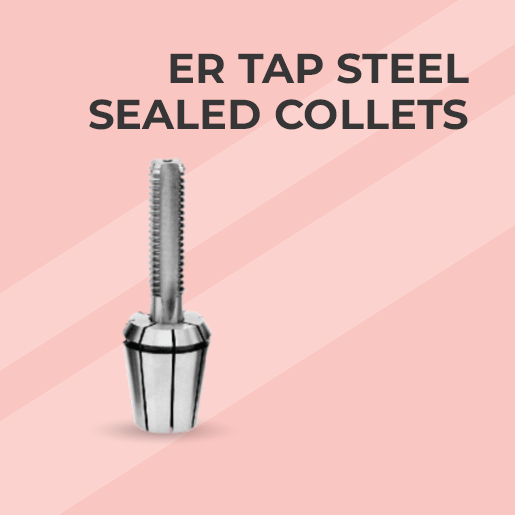

250072TS | ER TAP STEEL SEALED COLLETS

$66.00

Chicago, USA Stock -

Canada Stock -

ERTSS40-0.3125s Tap STEEL Sealed Collets

Weight: 0.245 kg

Specification

Series: ERTSS40

ShankSize: 0.3125" Inch

TapStandard: ANSI Standard (Inch)

Delivery and Shipping

US Domestic Shipping Only: We ship exclusively within the United States using UPS as our primary carrier.
Processing Time: Orders are typically processed within 1–2 business days. Orders placed on weekends or holidays will be processed on the next business day.
Delivery Times: Delivery times vary based on the shipping method and destination (estimates are provided at checkout). Please note that carrier delays (e.g., weather or unforeseen issues) are beyond our control.
Costs & Methods: UPS Standard, Expedited, and Express methods are available. Shipping rates are calculated based on weight and destination at checkout.
Tracking & Support: Tracking information will be emailed once shipped. For tracking issues, errors, or damaged/lost packages, contact us at sales@pactoolsusa.com or 262-282-2456.

Description

Description

ERTSS40-0.3125s Tap STEEL Sealed Collets

Accuracy

PAC Precision Tools ER Tap Steel Sealed Collets have been specifically designed for precision tapping applications that involve the incorporation of sealing. They ensure the efficient tapping of holes while preventing the leakage of coolant.

The ER Tap Steel Sealed Collets have been designed using high-quality hardened spring steel. They have been precision-ground to provide high precision. They ensure the efficient tapping of holes while providing the benefits of coolant usage.

Dimensions

ER Series	D	L
ER11 TAP COLLET	0.444"	0.709"
ER16 TAP COLLET	0.659"	1.063"
ER20 TAP COLLET	0.817"	1.220"
ER25 TAP COLLET	1.013"	1.378"
ER32 TAP COLLET	1.289"	1.575"
ER40 TAP COLLET	1.604"	1.811"

Features

For synchronous tapping operation using a standard ER collet chuck
Collet bore is exactly to the Tap shank diameter with a square drive for accuracy and rigidity
Replace expensive tap holders
Sealed design for through-coolant applications
Made from hardened and tempered high-quality spring steel
Prevents coolant leakage and maintains pressure stability

PAC Precision Tools, a Trusted CNC tools distributor in Mississippi ER Tap Steel Sealed Collets have been designed for the efficient tapping of holes. They have been designed for the synchronization of the tapping process. They ensure the efficient tapping of holes while providing the benefits of coolant usage.

Frequently Asked Questions

1. What factors should be considered before selecting an ER Tap Steel Sealed Collet?▼

When selecting an ER Tap Steel Sealed Collet, consider tap size, square drive size, ER holder type, and coolant pressure requirements. Also check the material being tapped and whether rigid tapping is used. A precision tools supplier in the USA can help match the correct collet to your CNC setup.

2. What industries commonly rely on ER Tap Steel Sealed Collets? ▼

Industries such as aerospace, automotive, medical device manufacturing, and mold making commonly used ER Tap Steel Sealed Collets. These industries require accurate threads, controlled coolant flow, and reliable tapping performance in CNC machining.

3. How does the steel sealing feature improve coolant retention? ▼

The steel seal blocks coolant from escaping through the collet slots, forcing coolant to flow through the tap instead. This improves cooling at the cutting edge, reduces heat buildup, and helps flush chips during tapping operations.

4. How does the square drive in ER Tap Steel Sealed Collets improve thread accuracy? ▼

The square drive locks into the square end of the tap, preventing rotation slip during cutting. This ensures accurate torque transfer, consistent thread depth, and better thread quality, especially during rigid tapping.

5. Do ER steel sealed collets support rigid tapping applications? ▼

Yes, ER Tap Steel Sealed Collets are designed to support rigid tapping. Their strong clamping force, square drive engagement, and coolant control make them suitable for high-speed and high-precision rigid tapping operations.

6. Need help selecting ER Tap Steel Sealed Collets for your application? ▼

For more information, you can contact us here at +1 262-282-2456 or email us at sales@pactoolsusa.com. PAC Precision Tools USA is a reliable CNC tools distributor in the USA, ready to support your tooling needs.
