Introduction

Choosing the right tool holder is one of the most important decisions in CNC machining.

A high-quality tool holder helps improve accuracy, tool life, surface finish, and overall machine performance.

Today, the most common tool holder systems used in CNC machining are:

• HSK Tool Holders

• BT Tool Holders

• CAT Tool Holders

Each system has its own strengths and is designed for different machining requirements.

If you are unsure which one is best for your machine or application, this guide will help you understand the differences in simple terms.

What is tool holders, let’s discuss in this blog further:

• What Is a Tool Holder?

• Understanding HSK Tool Holders

• Understanding BT Tool Holders

• Understanding CAT Tool Holders

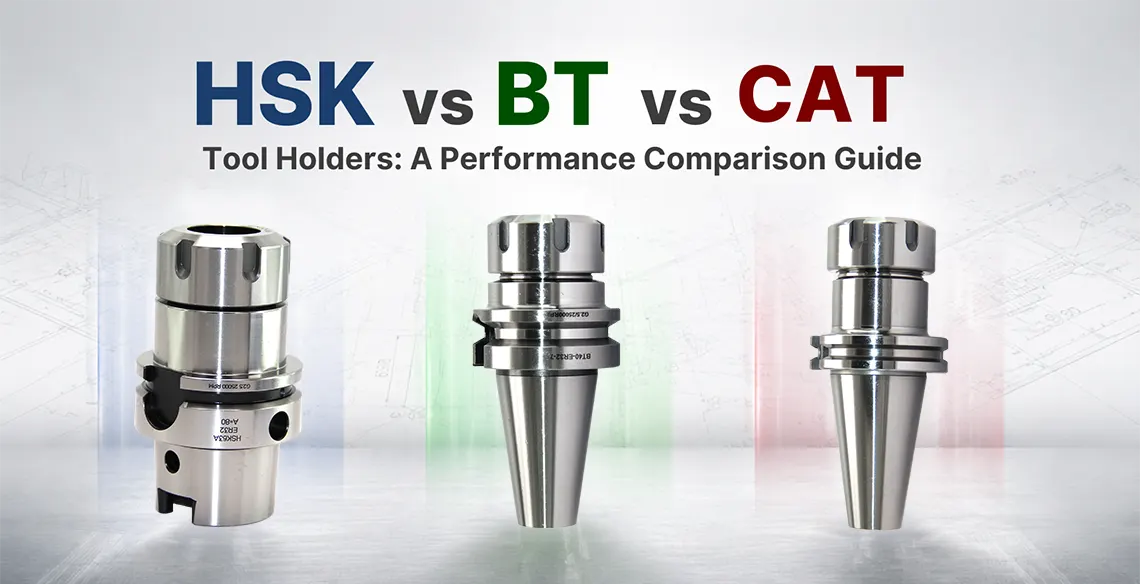

• Comparing HSK, BT, and CAT Tool Holders

• Which Tool Holder Should You Choose?

• Why Tool Holder Selection Matters

• How PAC Precision Tools Can Help



What Is a Tool Holder?

A tool holder is the component that connects the cutting tool to the CNC machine spindle.

Its job is to:

• Hold the cutting tool securely

• Maintain machining accuracy

• Reduce vibration

• Transfer cutting forces safely

Even the best cutting tool cannot perform well if the tool holder is not suitable for the application.

Understanding HSK Tool Holders

HSK stands for Hollow Shank Taper.

These tool holders are commonly used in modern high-speed CNC machining applications.

Unlike traditional holders, HSK holders make contact with both the taper and the spindle face.

This creates a stronger and more stable connection.

Benefits of HSK Tool Holders

• Excellent accuracy

• High rigidity

• Better performance at high speeds

• Reduced vibration

• Faster tool changes

Best Applications

HSK holders are commonly used in:

• Aerospace manufacturing

• Automotive industries

• High-speed machining

• Precision engineering

• Mold and die production

Because of their advanced design, HSK holders from a CNC tools supplier in Illinois are often considered the best choice for demanding machining operations.|

Understanding BT Tool Holders

BT stands for MAS-BT, a standard developed in Japan. BT holders are widely used around the world because they offer a good balance between performance and cost. BT holders have a symmetrical design, which helps improve balance during machining.

Benefits of BT Tool Holders

• Good machining accuracy

• Reliable performance

• Easy availability

• Cost-effective solution

• Suitable for many CNC machines

Best Applications

BT holders are commonly used in:

• General machining

• Milling operations

• Medium-speed production

• Job shops

• Production workshops

Many manufacturers choose BT holders from a top tool holder manufacturer in the USA, because they provide dependable performance without the higher cost of advanced systems.

Understanding CAT Tool Holders

CAT stands for Caterpillar Taper and is widely used in North America. CAT holders have a V-flange design that allows automatic tool changing.

They are known for their strength and durability.

Benefits of CAT Tool Holders

• Strong construction

• Reliable tool clamping

• Good durability

• Suitable for heavy cutting operations

Best Applications

CAT holders are commonly used in:

• Heavy-duty machining

• Large CNC machines

• Industrial production

• Metal removal applications

Many machine shops prefer CAT holders for rough machining and heavy cutting jobs.

Comparing HSK, BT, and CAT Tool Holders

1. Accuracy

When it comes to machining accuracy:

HSK generally provides the highest precision because of its dual-contact design.

BT offers good accuracy for most machining operations.

CAT provides reliable accuracy but may not match HSK in high-precision applications.

Winner: HSK

2. High-Speed Performance

At high spindle speeds, balance and rigidity become extremely important.

HSK holders are specifically designed for high-speed machining.

BT holders perform well at moderate speeds.

CAT holders are usually better suited for lower-speed heavy cutting applications.

Winner: HSK

3. Tool Change Speed

Modern manufacturing often requires quick tool changes to improve productivity.

HSK holders are lightweight and designed for fast automatic tool changes.

BT and CAT holders also support automatic tool changing, but HSK systems are generally faster and more efficient.

Winner: HSK

4. Heavy-Duty Cutting

For aggressive metal removal and heavy machining operations, strength becomes the priority.

CAT holders are known for their rugged construction.

They perform very well in demanding roughing applications.

Winner: CAT

5. Cost

Budget is always an important factor.

Generally:

• CAT holders are affordable

• BT holders offer a good balance of price and performance

• HSK holders are usually the most expensive

However, HSK holders often provide higher productivity and precision, which can justify the investment.

Most Cost-Effective: BT

Which Tool Holder Should You Choose?

The best choice depends on your machining requirements.

Choose HSK If:

• You perform high-speed machining

• You need maximum accuracy

• You manufacture precision machining parts

• You want the latest tooling technology

Choose BT If:

• You need reliable all-around performance

• You want a balance between cost and quality

• You perform general CNC machining

Choose CAT If:

• You perform heavy-duty cutting

• You need strong and durable tooling

• Your machines are designed for CAT systems



Why Tool Holder Selection Matters

Many manufacturers focus only on cutting tools.

However, the tool holder is equally important.

The right tool holder can help:

• Improve machining accuracy

• Increase tool life

• Reduce vibration

• Improve surface finish

• Increase machine productivity

Choosing the correct holder can lead to better machining results and lower operating costs.

How PAC Precision Tools Can Help

At PAC Precision Tools, we understand that different machining applications require different tooling solutions.

Our precision-engineered tool holders are designed to provide:

• High accuracy

• Excellent rigidity

• Reliable performance

• Long service life

We offer a wide range of:

• HSK Tool Holders

• BT Tool Holders

• Precision Collets

• CNC Tooling Accessories

to support modern manufacturing requirements.

Conclusion

HSK, BT, and CAT tool holders all have their own benefits.

HSK is ideal for high-speed and high-precision machining.

BT offers excellent value and versatile performance for everyday machining.

CATtaper from top CNC tools supplier in California, provides outstanding strength for heavy-duty cutting applications.

There is no single tool holder that is best for every situation. The right choice depends on your machine, production goals, and machining requirements.

By understanding the strengths of each system, manufacturers can choose the tool holder that delivers the best performance for their specific application.
