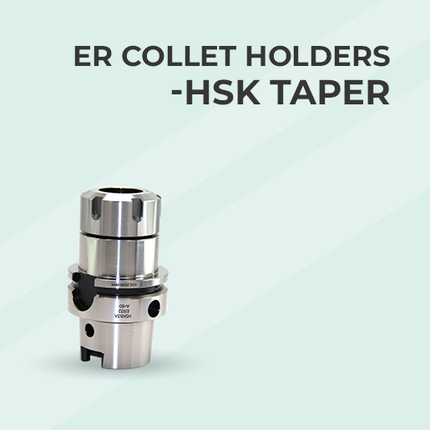

520034-2 | HSK TAPER | ER COLLET HOLDERS

$350.00
Chicago, USA Stock -
Canada Stock -
HSK100A-ER16-160-25K Holder
Specification
NutType: HEX
Proj. Length: 160mm
Series: ER16
Taper: HSK100A
  • US Domestic Shipping Only: We ship exclusively within the United States using UPS as our primary carrier.
  • Processing Time: Orders are typically processed within 1–2 business days. Orders placed on weekends or holidays will be processed on the next business day.
  • Delivery Times: Delivery times vary based on the shipping method and destination (estimates are provided at checkout). Please note that carrier delays (e.g., weather or unforeseen issues) are beyond our control.
  • Costs & Methods: UPS Standard, Expedited, and Express methods are available. Shipping rates are calculated based on weight and destination at checkout.
  • Tracking & Support: Tracking information will be emailed once shipped. For tracking issues, errors, or damaged/lost packages, contact us at sales@pactoolsusa.com or 262-282-2456.
Description

HSK100A-ER16-160-25K Holder

Accuracy

A HSK Taper distributor in Indiana provides Quick Change Tapping Holders from a top CNC supplier in Oregon that are designed for high-speed, high-precision machining centers. The hollow shank interface is designed to provide high rigidity and dynamic balance during the tapping operation.

Dimensions

ER COLLET HOLDERS HSK A TAER Dimensions

Features

  • Hollow shank design for high-speed machining
  • Dual-contact system for maximum rigidity and stability
  • Excellent thermal stability at high spindle speeds
  • Superior concentricity for high-precision machining
  • Reduced vibration for improved surface finish and tool life
  • Compatible with ER16 through ER40 collet systems
  • Ideal for aerospace, automotive, and precision manufacturing industries
  • Balanced to 25,000 RPM at G2.5
  • Corrosion-proof construction with a special rust-preventive coating
  • Accuracy: 0.0001" TIR or better
  • AT3 class precision taper
  • Hardness: HRC 56–58
  • Carbon depth: 0.8mm ± 0.2mm
  • Surface roughness: Ra < 0.005mm
  • Manufactured from case-hardened alloy steel

Frequently Asked Questions

1. What is an HSK Taper ER Collet Holder? â–¼
An HSK Taper ER Collet Holder is a precision tool holder designed for high-speed CNC machining. It combines the rigidity of the HSK taper with the versatility of ER collets to provide accurate and secure tool holding for milling, drilling, reaming, and finishing applications.
2. What are the advantages of HSK Taper ER Collet Holders? â–¼
HSK ER Collet Holders offer dual-contact spindle engagement, excellent rigidity, low runout, and superior balance. These features improve machining accuracy, extend tool life, and deliver better surface finishes at high spindle speeds.
3. Which HSK taper sizes are available at PAC Precision Tools? â–¼
PAC Precision Tools USA offers HSK50A, HSK63A, and HSK100A ER Collet Holders compatible with ER16, ER20, ER25, ER32, and ER40 collet systems for a wide range of CNC machining applications.
4. Are HSK Taper ER Collet Holders suitable for high-speed machining? â–¼
Yes. The HSK taper design provides excellent balance, rigidity, and thermal stability, making these holders ideal for high-speed milling, drilling, reaming, and finishing operations.
5. How do I maintain an HSK Taper ER Collet Holder? â–¼
Clean the taper, collet pocket, and clamping surfaces after every use. Regularly inspect the holder for wear and corrosion to maintain optimum accuracy and extend the life of both the holder and cutting tools.
6. Which ER collets are compatible with HSK Taper ER Collet Holders? â–¼
HSK Taper ER Collet Holders are available for ER16, ER20, ER25, ER32, and ER40 collets, allowing them to hold a wide range of cutting tool diameters for various machining operations.
7. Need help selecting the right HSK Taper ER Collet Holder? â–¼
For more information, you can contact us at +1 262-282-2456 or email us at sales@pactoolsusa.com. Our team will help you choose the right HSK Taper ER Collet Holder for your CNC machining requirements.
