ER NUT | 111003

Download Catalog

$25.00

Chicago, USA Stock -

Canada Stock -

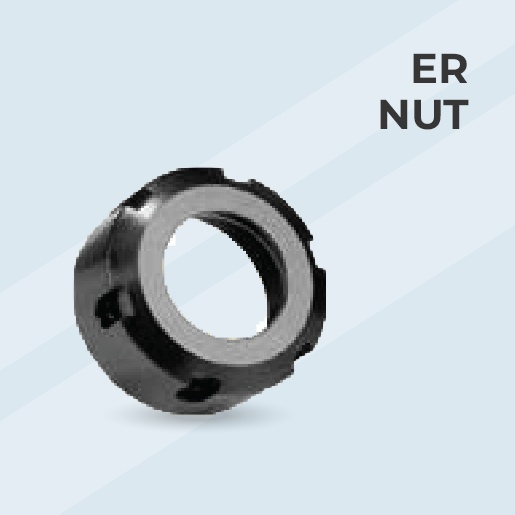

ER16 Hex Balanced Nut

Weight: 0.06 kg / 0.13 lb

Delivery and Shipping

US Domestic Shipping Only: We ship exclusively within the United States using UPS as our primary carrier.
Processing Time: Orders are typically processed within 1–2 business days. Orders placed on weekends or holidays will be processed on the next business day.
Delivery Times: Delivery times vary based on the shipping method and destination (estimates are provided at checkout). Please note that carrier delays (e.g., weather or unforeseen issues) are beyond our control.
Costs & Methods: UPS Standard, Expedited, and Express methods are available. Shipping rates are calculated based on weight and destination at checkout.
Tracking & Support: Tracking information will be emailed once shipped. For tracking issues, errors, or damaged/lost packages, contact us at sales@pactoolsusa.com or +1 262-282-2456.

Description

Description

ER16 Hex Balanced Nut

Accuracy

PAC Precision Tools ER Nuts are made to hold ER collets in ER collet holders. This means you can count on your tools to stay in place and your machine to work accurately. These nuts are built to last and made to work, so you get a strong grip and a smooth experience when you put your tools in.

PAC Precision Tools ER Nuts are made from good, hardened alloy steel and cut to very precise measurements. This means they will last a long time and always hold your tools securely.

Dimensions

Features

They work with ER collet systems like ER16, ER20, ER25, ER32, ER40 and ER50
They hold your tools in place with a lot of force
The threads are cut so your tools go in smoothly
They are designed to put pressure on your tools
They are made from alloy steel, so they are tough
They can withstand a lot of wear and tear
They have a finish that keeps them from rusting
They work well in CNC machining applications

PAC Precision Tools, an ER Nuts distributor in the USA, makes sure your collets are held tightly, your machine works accurately, and you can depend on them even when you are doing CNC work, with PAC Precision Tools ER Nuts.

Frequently Asked Questions

1. What is an ER Nut, and what is its role in CNC tool holding? ▼

An ER Nut is used with ER collet holders to securely clamp the collet and cutting tool in place. It applies even pressure around the collet, ensuring stable and accurate tool holding during CNC machining operations.

2. How does an ER Nut affect tool clamping force and runout? ▼

A high-quality ER Nut provides uniform clamping force, which helps reduce tool runout and vibration. Poor-quality or worn nuts can cause uneven pressure, leading to reduced accuracy and machining issues.

3. How do I properly install an ER Nut for safe operation? ▼

The collet should be snapped into the ER Nut before inserting the cutting tool. The nut is then threaded onto the collet holder and tightened evenly using the correct torque wrench to prevent damage or over-tightening.

4. What standards or quality requirements should ER Nuts meet? ▼

ER Nuts should meet international ER collet system standards and dimensional tolerances. Proper material selection, heat treatment, and machining accuracy ensure strength, durability, and consistent clamping performance.

5. How can I detect thread damage or wear in ER Nuts? ▼

Common signs include rough or damaged threads, difficulty during tightening, uneven clamping pressure, or visible wear. Regular inspection helps prevent tool slippage and maintains safe CNC operation.

6. Need help selecting ER Nuts for your CNC tool holders? ▼

If you need assistance choosing the right ER Nut for your CNC tool holders, please contact us at +1 262-282-2456 or email us at sales@pactoolsusa.com. PAC Precision Tools USA is a trusted CNC tools distributor in the USA and a precision tools supplier in the USA.
