What are TYPE-CS Bushings used for in CNC toolholding?

TYPE-CS Bushings are specially designed for use with coolant-through tools. Their unique construction allows cutting fluids to pass directly through the tool shank, improving chip removal and cooling during high-speed operations. View product options at pactoolsusa.com.

How does the “CS” design differ from standard bushings?

The TYPE-CS Bushing features a coolant slot and through-hole, enabling it to support tools that require internal coolant delivery. This makes it ideal for deep hole drilling and long-run precision machining. Learn more at pactoolsusa.com.

Are TYPE-CS Bushings compatible with all tool holders?

Yes, TYPE-CS Bushings are manufactured in standard outer diameters and lengths, making them suitable for use in most CNC end mill holders, boring bars, and sleeves. For compatibility details, visit pactoolsusa.com.

What materials are used to manufacture TYPE-CS Bushings?

These bushings are typically made from high-grade, hardened alloy steel with a ground finish for long-lasting durability and concentricity. Their strength ensures stability in high-pressure coolant environments. Explore specs at pactoolsusa.com.

In which applications are TYPE-CS Bushings most beneficial?

TYPE-CS Bushings are widely used in CNC drilling, milling, and tapping operations where coolant-through tooling is essential — especially in aerospace, automotive, and mold-making industries. Visit pactoolsusa.com for industry-specific uses.

Click to enlarge

Previous product

112846

$112.00

Next product

112848 $112.00

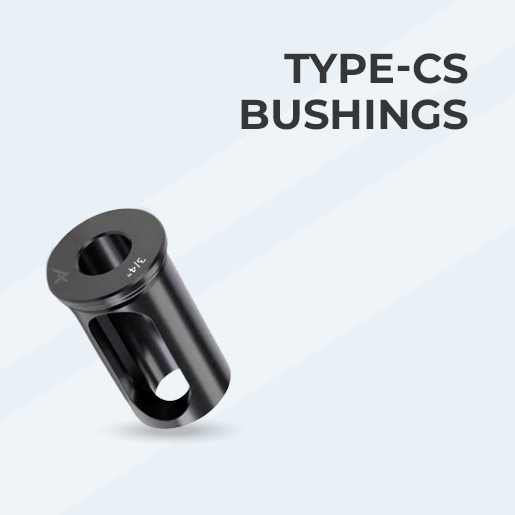

112847 | TYPE-CS BUSHINGS

$112.00

Chicago, USA Stock -

Canada Stock -

TSCS65mm-1750 Type-CS Bushing

Specification

BoreSize - 1.75"
OdSize - 65mm
Size - MM

Description

Description

TSCS65mm-1750 Type-CS Bushing

Frequently Asked Questions

1. What are Type-CS Bushings, and where are they commonly used in machining? ▼

Type-CS Bushings are slotted tool holder bushings designed to securely hold straight-shank tools. They are commonly used in drilling, reaming, and boring operations where slight flexibility and strong clamping are needed. PAC Precision Tools, as a trusted Type-CS Bushing supplier in USA provides bushings for accurate CNC machining.

2. How do I detect if a Type-CS Bushing is worn or misaligned? ▼

Signs include tool vibration, poor surface finish, increased runout, or difficulty holding the tool firmly. Visual wear marks, scratches, or uneven clamping also indicate replacement is needed. Regular inspection helps maintain machining accuracy.

3. Can Type-CS Bushings be used in high-speed machining operations? ▼

Yes, precision-manufactured Type-CS Bushings can be used in high-speed machining when properly balanced and sized. They provide stable clamping and reduced vibration when sourced from a precision tools supplier in the USA.

4. How do I identify the correct Type-CS Bushing for my tool holder? ▼

Match the bushing’s outer diameter to the tool holder bore and the inner diameter to the tool shank size. Correct sizing ensures a tight fit, low runout, and safe machining. PAC Precision Tools, a CNC tools distributor in the USA, can help confirm compatibility.

5. How do Type-CS Bushings differ from Type-C Bushings? ▼

Type-CS Bushings have slots that allow better compression around the tool shank, offering improved grip. Type-C Bushings are solid and more rigid. Type-CS is preferred where slight tolerance variation needs to be accommodated.

6. What maintenance practices help extend the life of Type-CS Bushings? ▼

Clean bushings regularly to remove chips and coolant residue. Avoid over-tightening and store them in a dry environment with light rust protection. Proper maintenance helps retain accuracy and extend service life. If you need more information or guidance on the maintenance of Type-CS Bushings, contact us here at +1 262-282-2456 or email us at sales@pactoolsusa.com.

7. Which industries most commonly use Type-CS Bushings? ▼

Industries such as automotive, aerospace, mold & die, general engineering, and CNC job shops frequently use Type-CS Bushings. These industries require flexible yet precise tool holding for drilling and boring applications.

8. Need help selecting Type-CS Bushings for your application? ▼

If you need more information or guidance with choosing the right Type-CS Bushings, you can contact us here at +1 262-282-2456 or email us at sales@pactoolsusa.com. PAC Precision Tools USA is a trusted precision tools supplier in the USA and a Type-CS Bushing distributor in USA.
